Get it wrong, and you're looking at redesigned ductwork, delayed inspections, or a bearing wall you didn't budget for. Get it right, and framing becomes the easiest part of the build.
Builders are increasingly turning to engineered systems, including cold-formed steel, for dimensional accuracy and faster field installation. This guide breaks down the types, spans, costs, and decision factors so you can pick the right system before the first stick hits the jobsite.
Key Takeaways
- Floor trusses enable longer clear spans and open-web MEP routing, but need engineering lead time
- I-joists offer field flexibility and steadier pricing, though utilities require drilled holes
- Girder trusses carry concentrated loads and demand specific engineering, not standard details
- True cost per square foot hinges on span, spacing, and labor, not just material price
- Cold-formed steel systems like the Frame X System™ offer an installation-ready alternative to wood
Understanding Floor Trusses and Joists: Core Differences
A floor truss is an engineered, open-web horizontal component built from parallel top and bottom chords connected by vertical and diagonal webs. In wood construction, metal connector plates hydraulically embedded at each joint hold the assembly together, according to the American Wood Council. Cold-formed steel floor trusses use the same open-web geometry with screwed or welded connections.
A floor joist, by contrast, covers a broader category. Dimensional lumber joists are solid-sawn wood sized per prescriptive code tables. I-joists are engineered members with LVL or solid-sawn flanges and an OSB web.
Floor Trusses

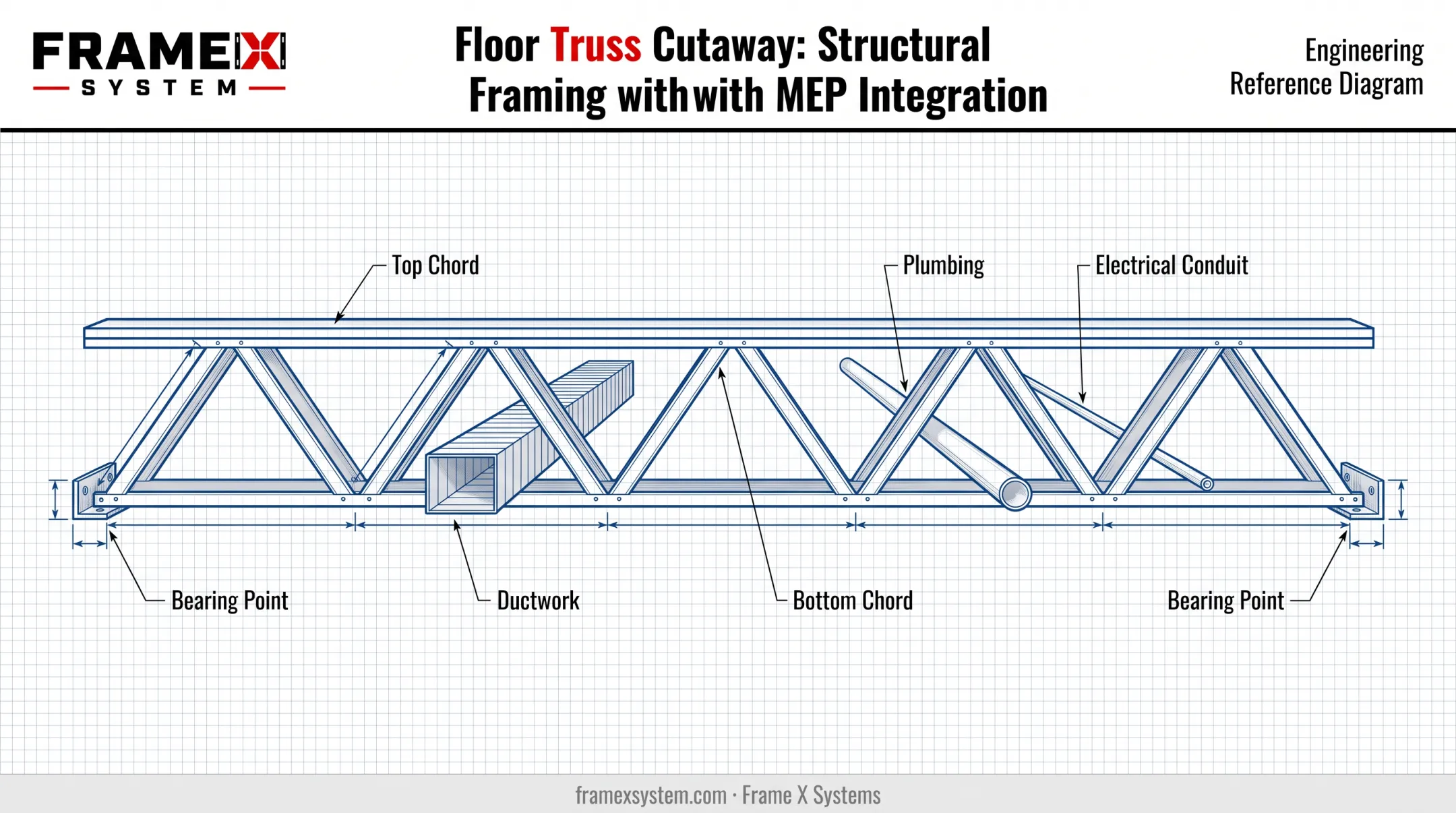

Trusses distribute load through their web pattern down to bearing points. That triangulated geometry allows longer spans and creates open channels for ductwork, plumbing, and electrical to run straight through the web instead of around it.
Every truss is custom-engineered per project. There's no generic "40-foot truss" sitting on a shelf. Each one requires a stamped design based on span, spacing, and loading conditions specific to that floor.
I-Joists and Dimensional Lumber Joists
I-joists pair LVL or solid-lumber flanges with an OSB web, per APA's Z725 guide. That construction resists twisting and warping far better than dimensional lumber.
Unlike trusses, I-joists don't require individual engineering. They're field-trimmable within manufacturer guidelines, which makes them easier to adjust on-site when conditions shift mid-build.

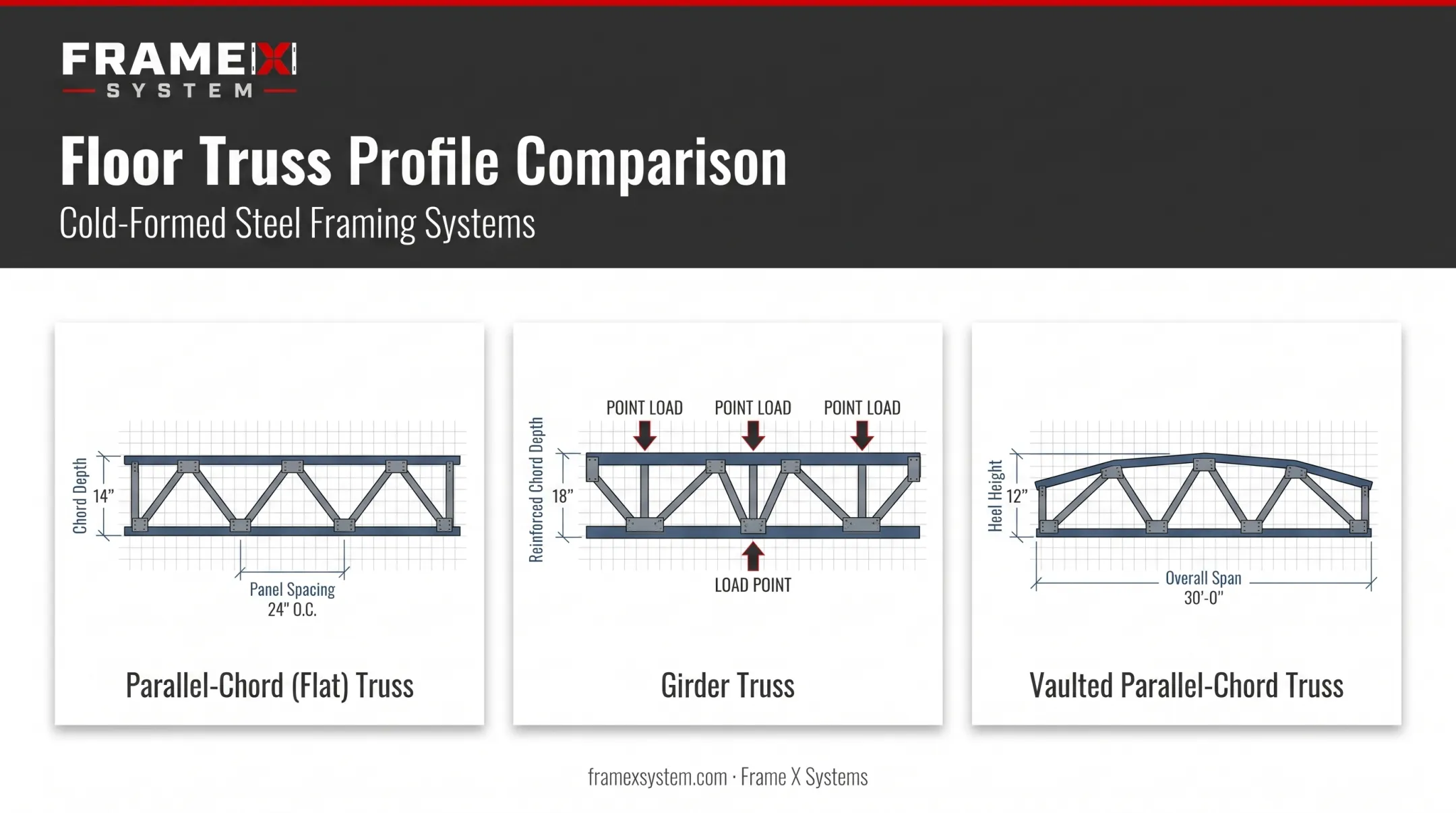

Types of Engineered Floor Truss Systems
Not all floor trusses look or behave the same way. Understanding the categories helps you specify the right one.
- Parallel-chord (flat) trusses – Equal top and bottom chords for floors where a level ceiling plane matters. A 4x2 chord orientation (wider 2x4 face out) adds nailing surface and more stable sheathing attachment, per the Structural Building Components Association
- Girder trusses – Built to carry point loads from intersecting trusses or joists; they need distinct chord sizing and connection detailing, not standard truss hardware
- Vaulted parallel-chord trusses – Raised heel with matched chord pitch when you want an architectural profile without giving up load transfer
A note on terminology: You'll sometimes see "Warren" or "Pratt" pattern references applied to floor trusses. Industry documentation from SBCA doesn't actually classify floor trusses this way; those terms are more common in bridge and roof truss discussions. Stick to parallel-chord, girder, and vaulted classifications when specifying floor systems.
Cold-Formed Steel as a Modern Alternative
The wood categories above cover most conventional floor systems. Cold-formed steel (CFS) is a separate path when dimensional stability, durability, or non-combustible construction drives the spec.
CFS floor systems are governed by AISI S240-20. They hold dimensional accuracy, resist rot and warp, and support non-combustible assemblies. Design follows AISI S100, so load tables are not directly comparable to wood span charts. Frame X Systems manufactures CFS floor trusses to this basis as part of coordinated, installation-ready framing packages for residential and commercial projects.
Floor Trusses vs. I-Joists: Cost, Span, and Performance Comparison
This is where most framing decisions actually get made. Here's what matters.
Span Capability
Published span examples show real variation depending on product, depth, and loading:
| Product | Depth | Spacing | Max Span |
|---|---|---|---|
| Open Joist OJ315 | 11-7/8" | 16" o.c. | 18-0 ft |
| Open Joist OJ420 | 16" | 16" o.c. | 28-0 ft |
| APA PRI-80 I-joist | 16" | 24" o.c. | 25-0 ft (simple span) |
| Alpine wood floor truss | Varies | — | Up to 31-11 ft (L/360) |
Trusses generally win on long clear spans, but the exact number depends entirely on depth, spacing, and deflection limits specified for that project. There's no single "maximum span" figure that applies across products.
Cost Comparison
Material cost per truss typically runs higher than an equivalent I-joist. But that's only half the equation.
- Labor: Faster installation on long-span trusses can offset higher material costs
- Bearing changes: A Weyerhaeuser case study showed an added bearing letting an 11-7/8" I-joist replace an 18" truss, saving over $800 with the shallower depth
- Price volatility: Wood truss pricing tracks lumber market swings; I-joist and steel pricing tends to hold steadier
That case study is a single project outcome, not a universal rule. Run the numbers for your specific span and bearing layout before assuming either system wins on cost.
MEP Coordination and Installation Logistics

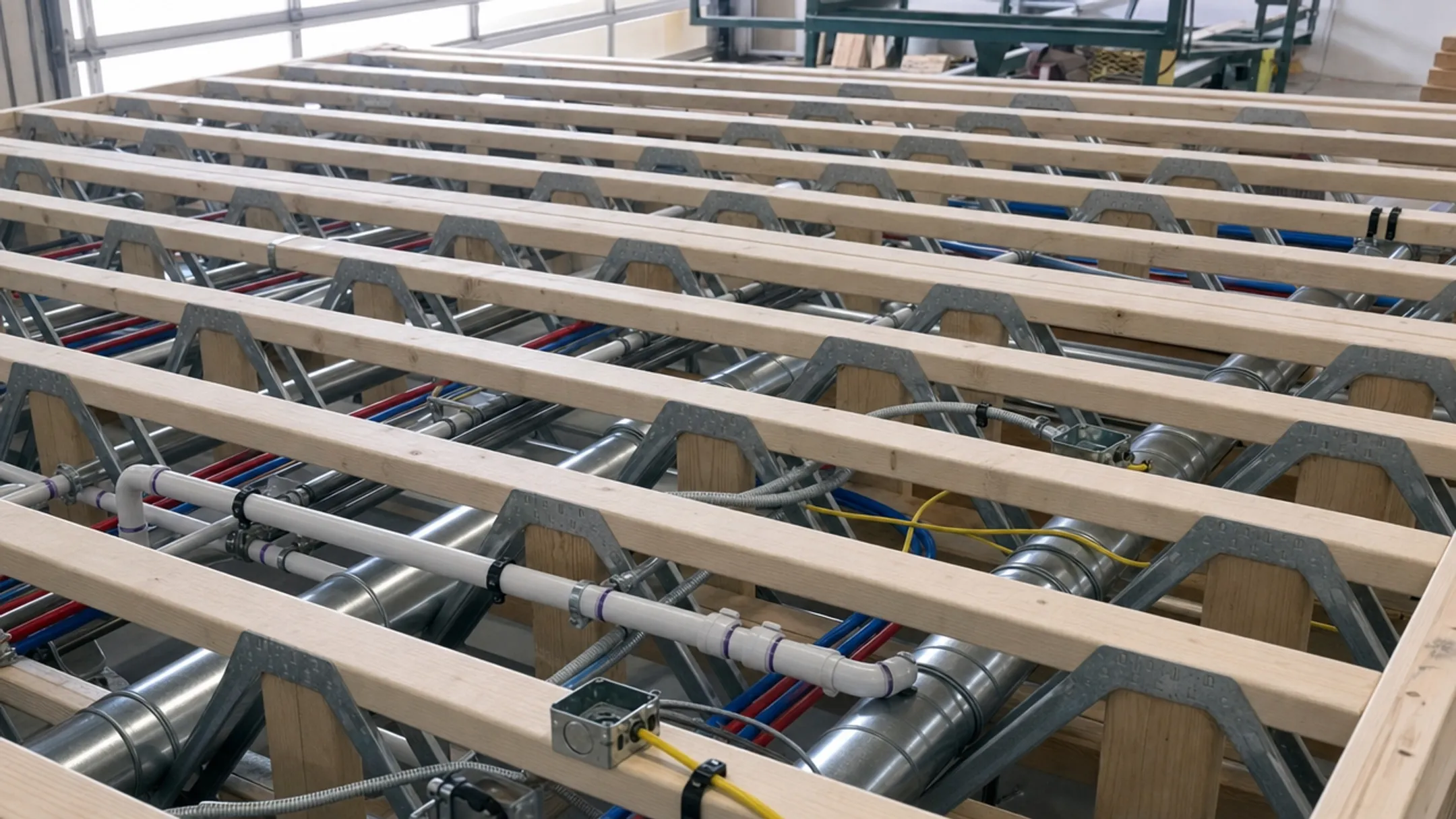

- Trusses: Open webs let ductwork and plumbing pass through cleanly, but heavier trusses often require crane placement
- I-joists: Require drilled holes for utilities (within manufacturer-approved zones), but crews can hand-carry and field-trim them without heavy equipment
- Layout flexibility: Trusses often eliminate interior bearing walls or columns, freeing floor plan options on the level below
Cost Factors and Estimating a 40-Foot Floor Truss
If you're pricing a 40-foot floor truss, skip the generic online calculators. Pricing depends on:
- Depth – Deeper trusses carry more load but cost more per linear foot
- Spacing – 16" o.c. raises material cost per bay; 24" o.c. may cut truss count—net $/SF depends on the design
- Loading – Live load, dead load, and deflection limits (L/360 vs. L/480) all shift the engineering
- Material and market conditions – Steel vs. wood, member gauge/chord design, and current mill or commodity pricing all move the quote
There's no reliable published $/linear-foot benchmark for a 40-foot truss. Suppliers price them per project from the stamped design—span, loads, spacing, reactions, and delivery—not a catalog rate.
What consistently matters: on long spans, faster install and less field fabrication often offset a higher material quote. Material-only comparisons miss the installed cost.
Choosing the Right Floor Framing System for Your Project
Boil the decision down to five factors:
- Span requirements – How far do you need to go without an interior bearing point?
- MEP complexity – Heavy mechanical routing favors open-web systems
- Budget – Material cost isn't the whole cost; factor labor and schedule
- Schedule – Custom-engineered trusses need lead time; I-joists are more readily available
- Building type – Multifamily and commercial projects often justify truss engineering costs that a single custom home wouldn't
Architect-led, engineering-first coordination reduces RFIs and change orders regardless of which material you choose. Resolving structural and MEP conflicts on paper, before fabrication, is cheaper than resolving them on the jobsite.

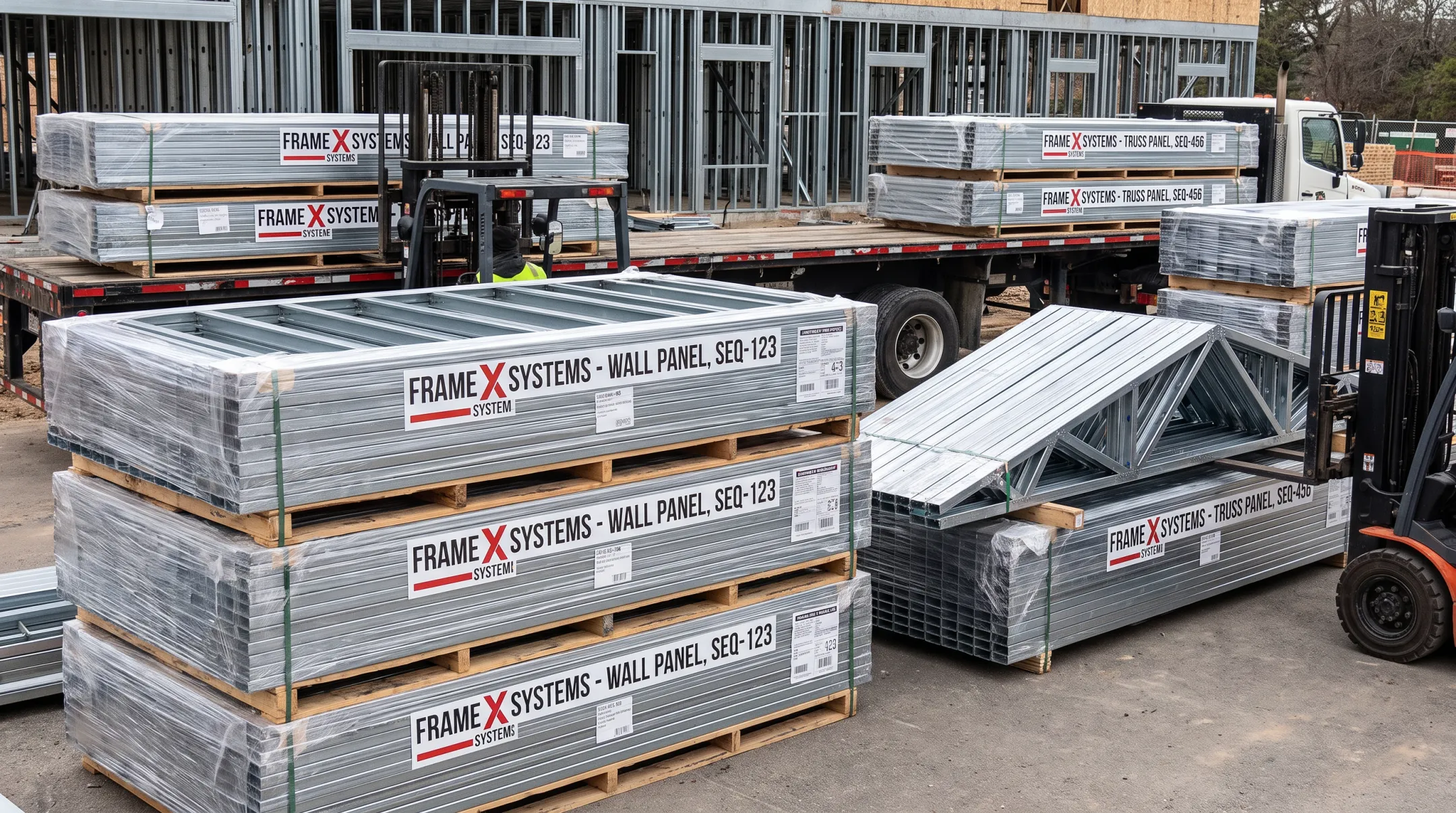

Frame X Systems is built around that coordination. Rather than supplying loose material, it delivers a fully coordinated cold-formed steel package: wall panels, load-bearing wall panels, and truss panels engineered together using BIM coordination models.
Every project ships with:
- Project-specific engineered shop drawings and panel layouts
- A stamped structural package with professional engineering sign-off
- Panels labeled, bundled, and sequenced by installation location
- Galvanized, non-combustible steel resistant to rot, warp, and fire
Stephen Baker, Frame X's principal architect, built the company on the idea that constructability problems should get solved at the design table, not discovered mid-framing. For developers and architects juggling span, MEP, and schedule pressures, that architect-led coordination often matters more than which chord pattern ends up on the drawings.
Frequently Asked Questions
How much does a 40-foot engineered floor truss cost?
Cost depends on depth, spacing, loading, and current lumber pricing, so there's no fixed rate. Get a project-specific quote from your stamped engineering design instead of a generic per-foot figure.
Are engineered floor trusses cheaper than I-joists?
Trusses often cost more per unit but can reduce labor and framing time on long spans. I-joists offer steadier pricing and easier field adjustments, so total installed cost depends on your span and bearing layout.
What is the maximum span for engineered floor trusses?
Wood floor trusses can exceed 30 feet under the right load and deflection criteria. I-joists commonly span 16 to 28 feet depending on depth and spacing. Always verify against the manufacturer's current span table for your loading.
What types of engineered floor trusses and floor truss systems are available?
Common options include:
- Parallel-chord (flat) trusses for level floor systems
- 4x2 orientation trusses for wider nailing surfaces
- Girder trusses for concentrated or transferred loads
- Vaulted parallel-chord trusses for architectural ceiling profiles
What is a girder truss and how does it differ from a regular truss?
A girder truss carries loads transferred from intersecting trusses or joists, rather than just its own span. It requires heavier chord sizing and specific connection detailing, so it can't be substituted with a standard truss design.
