This guide breaks down metal stud nomenclature, sizing charts, gauge selection, spacing standards, and field verification methods, so you can specify, order, and inspect with confidence.
TL;DR
- Studs are coded by web depth, flange width, and gauge, like 362S162-43
- Gauge numbering is reversed: lower number = thicker, stronger steel
- Standard spacing is 16" or 24" O.C., based on wall height and load
- Non-load-bearing walls typically use 25-20 gauge; load-bearing walls need 18-14 gauge
- Always verify actual dimensions against nominal sizing before ordering
What Metal Stud Specifications Represent in Framing

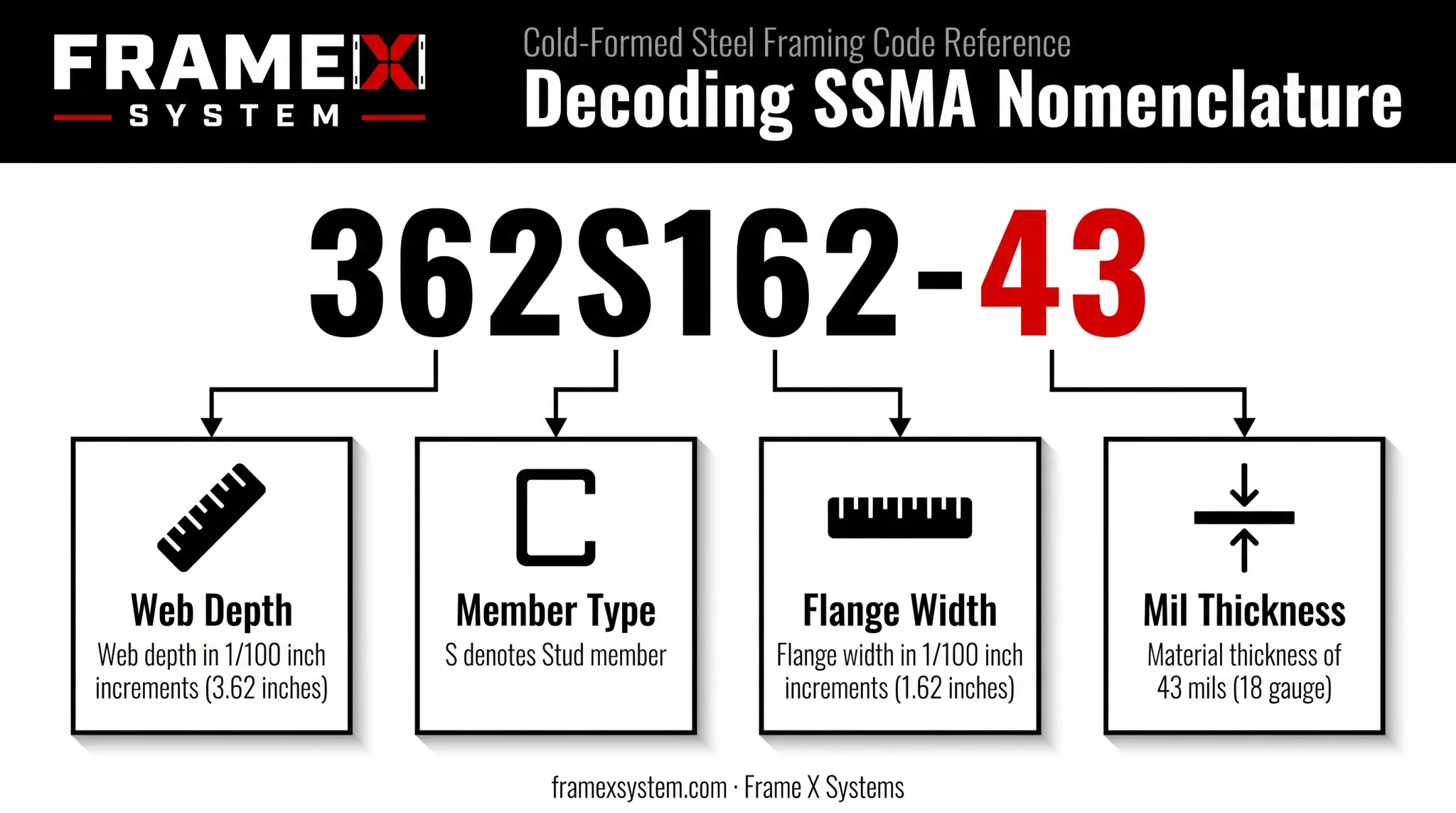

The SSMA/AISI nomenclature system packs four pieces of data into a single code. Take 362S162-43:
- 362 = web depth (3-5/8") in 1/100-inch increments
- S = member type (stud/joist; also T for track, U for channel, F for furring)
- 162 = flange width (1-5/8")
- 43 = designation thickness in mils
That last number—designation thickness in mils—maps directly to gauge. Gauge is the primary structural design variable: it determines how much load a stud can carry before it bows or fails. Web depth governs wall thickness and how much insulation fits inside the cavity.
On every project, these numbers serve two roles: a design input chosen by the architect or engineer, and a field verification checkpoint that inspectors and installers match against the stamped label on the stud. Get one number wrong at either stage, and the wall will not perform as designed.
Factors That Influence Specification Selection in Real-World Projects
Catalog sizes are nominal. Field performance depends on more than the printed number:
- Wall height and unsupported span — taller walls need thicker gauge or deeper web to resist deflection
- Load type — a non-load-bearing partition and a structural wall use entirely different spec ranges
- Manufacturer tolerance variation — AISI S240 allows web depth to vary ±1/32", which adds up across a run of studs
- Environmental factors — fire rating, sound (STC) requirements, and moisture exposure can all push a spec toward heavier gauge or specialty coatings
Range of Metal Stud Dimensions and Gauges
Metal stud sizing is defined by three variables: web depth, flange width, and gauge (mil) thickness. Industry ranges are standardized, but exact stock still varies by manufacturer.
Standard Web Depths and Flange Widths
Common web depths include:
- 1-5/8", 2-1/2", 3-5/8", 4", 6", and 8" for standard framing
- 10" to 14" for specialty structural use
- Up to 16" from some manufacturers (e.g., ClarkDietrich, SCAFCO)
Flange widths typically run 1-1/4" to 1-5/8" for standard framing. Structural members often use 2" or wider flanges.
Gauge and Mil Thickness Range
| Reference Gauge | Mil Thickness | Design Thickness (in.) | Field Color ID* |
|---|---|---|---|
| 25 | 18 | 0.0188 | None standardized |
| 20 (structural) | 33 | 0.0346 | White |
| 18 | 43 | 0.0451 | Yellow |
| 16 | 54 | 0.0566 | Green |
| 14 | 68 | 0.0713 | Orange |
| 12 | 97 | 0.1017 | Red |
*Color coding follows MarinoWARE's manufacturer nomenclature system, not a universal SSMA mandate. Always confirm color conventions with the specific manufacturer.
Two steel grades matter here: 33 ksi for lighter, non-structural gauges and 50 ksi for structural applications. Don't assume grade from gauge alone.
ClarkDietrich, for instance, lists 33 and 43 mil products at 33 ksi, while 54, 68, and 97 mil products are typically rated 50 ksi unless the submittal states otherwise.
Boundaries Between Non-Structural and Structural Applications
Gauge alone does not decide structural vs. non-structural. AISI sets the boundary with two standards:
- AISI S220 — nonstructural framing with strict load limits (10-15 psf transverse, 100 lb/ft axial)
- AISI S240 — structural framing for load-bearing walls, floors, and roofs
Exceeding a stud's rated span or height without upgrading gauge is the fastest path to a bowing wall. Match web, flange, gauge, and grade to the span/height limits on the engineered shop drawing before release.
Key Technical Properties That Define a Metal Stud Spec
A complete spec is more than depth and gauge. Three more properties decide how a stud performs once it's fastened into track.
Property 1: Steel Grade and Yield Strength
Yield strength feeds the load tables engineers use to set maximum unsupported height. Two common grades:
- 33 ksi — standard for many nonstructural and lighter applications
- 50 ksi — higher capacity when depth and gauge stay the same
A stud that matches another in depth and gauge can still carry a different load based on grade alone. Always check the stamped grade, not just the mil thickness.
Property 2: Web, Flange, and Lip Geometry
The lip return (the small return edge on the flange, typically 3/8" to 1/2") stiffens the section and resists twisting under load. Studs without adequate lip return are more prone to rotation and buckling, even when web depth and gauge look correct.
Property 3: Track Compatibility and Fit Tolerance
Track gauge must match or exceed the stud gauge it's paired with. Mixing brands without checking tolerances is a common source of field misalignment:

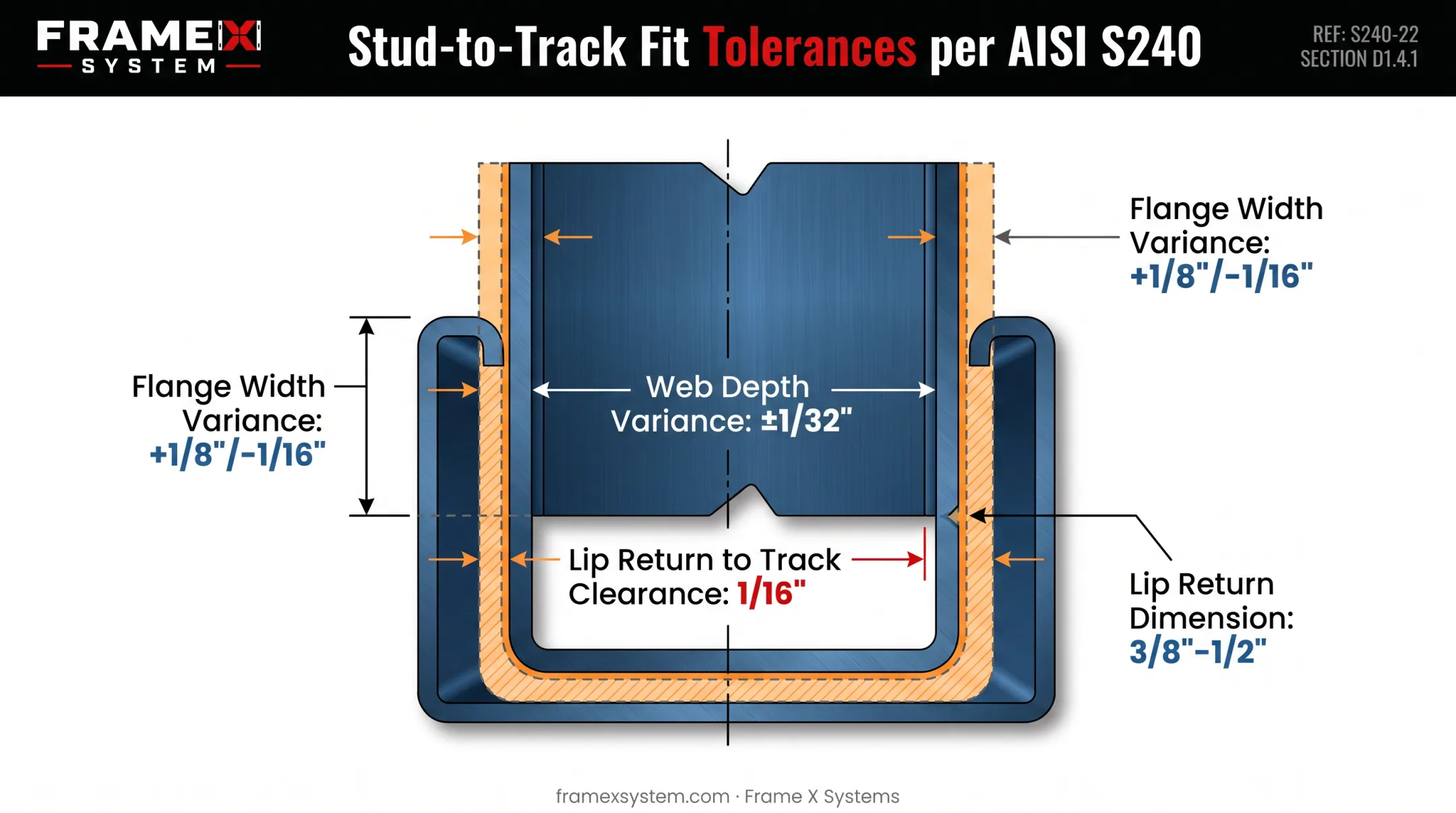

- AISI S240 structural tolerances allow web depth to vary ±1/32" and flange width +1/8"/-1/16"
- Nonstructural (S220) tolerances are similar but slightly looser on length
- Small variances compound across a wall run, causing drywall alignment issues
How Metal Stud Specifications Are Documented, Read, and Verified in the Field
A spec exists on paper first, then it has to survive contact with a jobsite. Both stages matter.
Specification and Labeling
Decoding a label like 600S162-54 gives you the full picture at a glance: 6" web depth, stud-type member, 1-5/8" flange, 54-mil thickness.
The catalog (nominal) value and the stamped (rated) value should match. Always confirm the stamp on the delivered material rather than assuming it matches the order sheet.
Field Verification Methods
Installers and inspectors have three ways to confirm a stud's actual spec:
- Read the manufacturer-stamped code directly on the stud, the fastest and most reliable method.
- Check the color-coded cut end when stamps have worn off or aren't visible, using the manufacturer's published color key.
- Measure with a micrometer when no markings exist at all. This fallback should confirm mil thickness against the design thickness table.
Skipping this step is how a 25-gauge partition stud ends up framed into a wall that needed 18-gauge.
Standard Spacing, Load-Bearing Status, and Common Specification Questions
Spacing conventions run 16" or 24" O.C., and the choice depends on wall height and drywall thickness. Taller walls and heavier finish loads generally push toward 16" O.C., while shorter, lighter partitions can use 24" O.C.

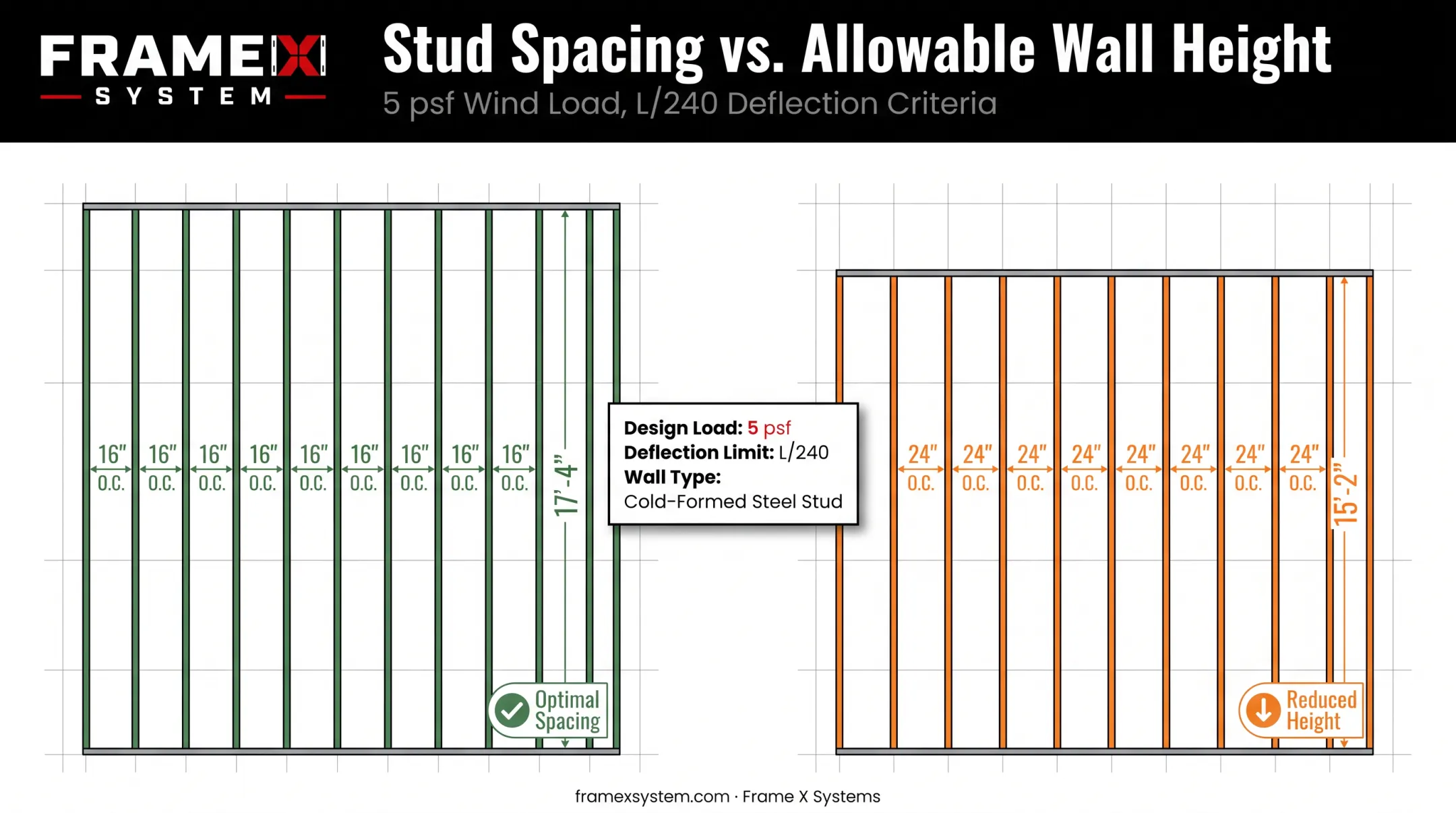

Manufacturer limiting-height tables (like ClarkDietrich's 362TLD125-24 sheet) confirm the pattern. At 5 psf and L/240 deflection, the same stud reaches 17'4" at 16" O.C. but only 15'2" at 24" O.C.
Is metal stud framing structural? Most interior partitions are not. But load-bearing walls, exterior framing, and structural assemblies commonly use heavier 16- to 14-gauge studs with wider flanges rated for gravity and lateral loads.
20-gauge vs. 25-gauge: the numbering is reversed from what most people expect. Twenty-gauge (33 mil) is thicker and stronger than 25-gauge (18 mil). Use 25-gauge for light, non-load-bearing interior partitions; reserve 20-gauge and heavier for anything carrying load or requiring a longer span.
Unresolved spacing and gauge choices are a common source of field RFIs and rebuilds. FrameX Systems handles those decisions before construction through an architect-led, BIM-coordinated workflow:
- Constructability review of the plans
- Engineered shop drawings and a stamped structural package
- Precision-manufactured, labeled panels delivered ready for install
That preconstruction pass is meant to settle spec questions on paper, not on site.
Common Misinterpretations of Metal Stud Specs in Practice
Four mistakes account for most of the specification errors on framing jobs:
- Assuming nominal equals exact: "3-5/8 inch" is a designation, not a guaranteed measurement across every manufacturer
- Treating gauge and mil as interchangeable: a "20-gauge" call-out can mean 30 mil or 33 mil depending on the manufacturer—always check the label
- Using non-load-bearing gauges on structural walls: a 25-gauge stud has no business carrying gravity or lateral load
- Mixing stud and track brands without checking tolerances: AISI allows small dimensional variance, but mismatched brands can compound it into visible misalignment
Conclusion
Metal stud specifications such as web depth, flange width, and gauge govern how a wall performs under load. Getting the spec right the first time prevents bowing walls, failed inspections, and rework that no one budgeted for.
Reading a size chart is only part of the job. Engineering judgment and coordinated pre-construction review matter as much as knowing what "362S162-43" means on paper.
Frequently Asked Questions
Is metal stud framing structural?
Yes—when specified for it. Most interior partitions are non-load-bearing and use lighter gauges. Heavier 14–16 gauge studs are common in load-bearing and exterior walls that resist gravity and lateral loads.
What are the specifications for metal studs?
Specs include web depth (1-5/8" to 8"+), flange width (1-1/4" to 2"+), and gauge/mil thickness. All three are identified through a standardized nomenclature code stamped on the member.
What is stronger, 20 gauge or 25 gauge metal studs?
Gauge numbering runs opposite to intuition. Twenty-gauge (33 mil) is thicker and stronger than 25-gauge (18 mil), so it suits taller walls and load-bearing work better.
What is the standard spacing for steel stud framing?
Sixteen inches on-center is most common for taller walls or heavier finish loads. Twenty-four inches on-center works for shorter, lighter-load partitions.
What are the actual dimensions of a 2x4 metal stud?
The metal equivalent, typically labeled as a 362 series (3-5/8" web), closely matches a wood 2x4's depth. Exact dimensions vary slightly by gauge and manufacturer, so always confirm the stamped label.
