Wall Bridging and Bracing for Cold-Formed Steel Studs Cold-formed steel stud walls look simple once they're finished. What most people don't see is the network of bridging that keeps those studs from twisting, bowing, or buckling under load before the sheathing ever goes up.

Unbraced or poorly braced CFS walls are a common source of costly rework, RFIs, and jobsite safety issues. In mid-rise construction, where lower floors can sit unsheathed for weeks while upper floors are framed, that risk multiplies fast.

This guide breaks down bracing requirements under AISI standards, the main bridging systems available, and how architect-led coordination (the approach Frame X Systems uses) helps catch bracing gaps before they ever hit the field.

Key Takeaways

  • Axially loaded CFS studs require bridging to resist flexural, torsional, and flexural-torsional buckling
  • Design bracing to AISI S100 and AISI S211 strength and stiffness requirements
  • Match tension, tension-compression, or compression-only bridging to the stud load path
  • Do not rely on sheathing alone for axial stability during construction
  • Pre-engineered, installation-ready framing packages help avoid common bridging design errors

What Is Wall Bridging and Why Does It Matter?

Wall bridging is the lateral bracing system installed within a cold-formed steel stud wall to keep studs from buckling globally under axial load. It is a mechanical restraint that holds studs in their intended plane until sheathing, floors, and other structural elements can share the stability demand.

Bridging addresses three buckling modes:

  • Flexural buckling – the stud bows along its weak axis
  • Torsional buckling – the stud twists about its own axis
  • Flexural-torsional buckling – a combination of bowing and twisting at once

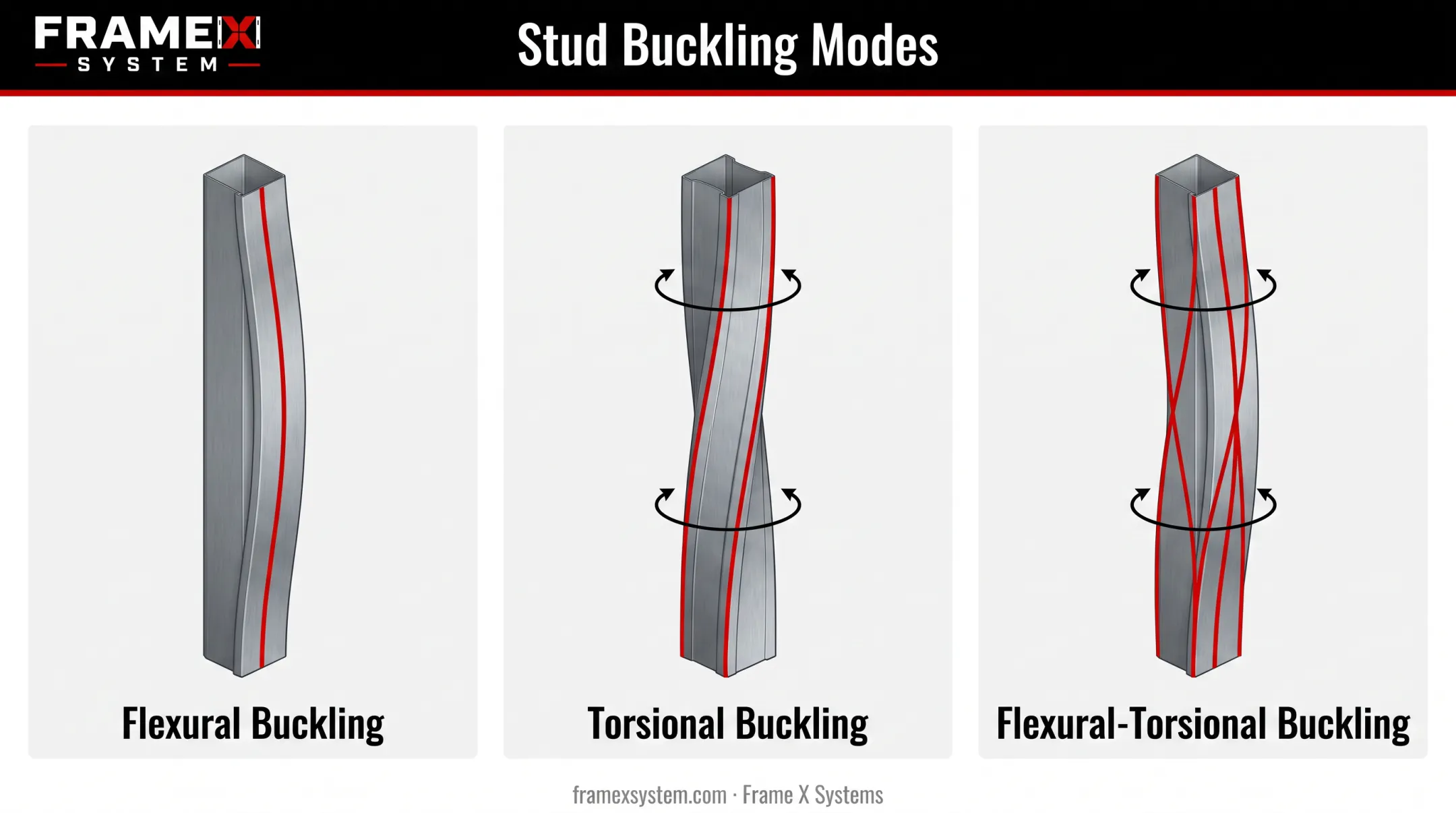

Three CFS stud buckling modes flexural torsional and flexural-torsional diagram

How that restraint is delivered—and what counts as the full stability system—is where jobsite language often blurs.

Bridging vs. Bracing

These terms get used interchangeably, but they are not the same thing.

  • Bridging refers to the physical mechanical members installed between studs
  • Bracing is the broader system, covering bridging, sheathing, blocking, and anchorage together

In an all-steel design, bridging carries the stability load rather than the sheathing. That distinction matters most in mid-rise CFS buildings, where lower floors often sit unsheathed for weeks during construction sequencing. If a contractor is asking "what's the actual bracing here, not just the finished wall," bridging is the answer they're looking for.

Do Metal Studs Need Bracing? Understanding the Requirements

Yes. Axially loaded metal studs require bracing, and two AISI standards define exactly how much.

AISI S100 (Section D3.3):

  • Brace strength requirement: 1% of the stud's required compressive axial strength
  • Also requires a stiffness check, calculated per stud and accumulated across multiple studs in a row

AISI S211 (Section B3.1):

  • Brace strength requirement: 2% of the design compression force in the member
  • No explicit stiffness requirement, just the more conservative strength percentage

That 1% vs. 2% split isn't arbitrary. S211's simpler approach skips the stiffness math but compensates with a stricter strength number.

One point that trips up a lot of GCs: gypsum sheathing typically doesn't count toward axial stability, even though it's structurally attached later.

Sequencing during construction means the sheathing isn't reliably in place when loads are applied, and moisture exposure on a jobsite can degrade its performance over time. All-steel designs are built around that reality rather than around an optimistic sheathing assumption.

The AISI Cold-Formed Steel Framing Design Guide includes a worked example: bridging-channel anchorage placed every 11 studs, producing a required bridging load of 0.519 kips, with interaction checks landing at 0.81 and 0.76 (both under the 1.00 limit).

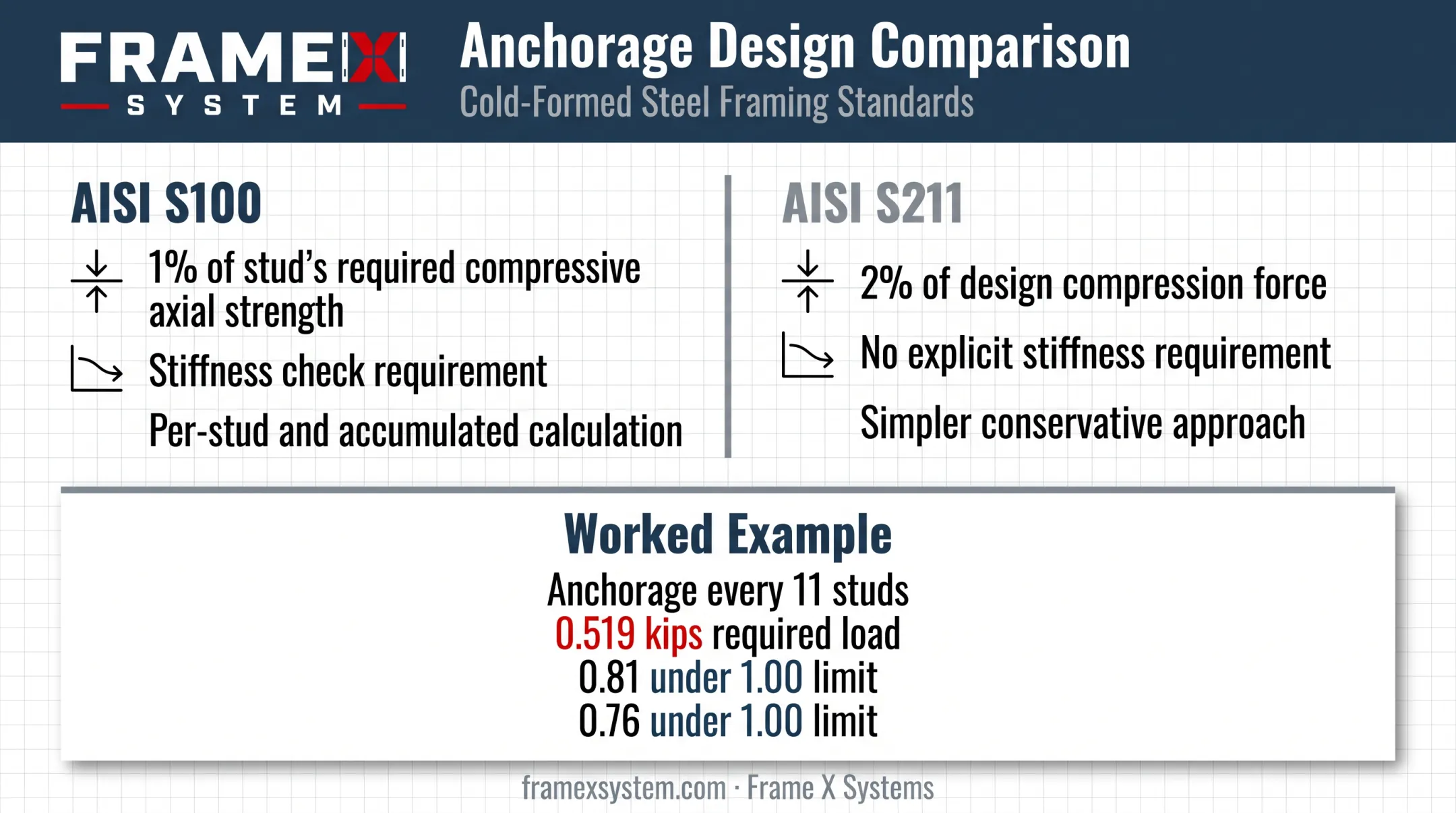

AISI S100 versus S211 bridging strength requirements comparison chart

That's the level of precision this kind of bracing calculation actually requires, which is part of why field-calculated bridging layouts go wrong so often.

Types of Steel Bracing Systems for CFS Walls

Not all bridging systems work the same way. Choosing the right one depends on stud spacing, wall access, and what else is running through the cavity.

Tension Systems

Flat strap bridging is attached to the stud flanges and works in tension only. Because tension-only systems can't resist compression, they need blocking at the ends and at intervals to complete the load path.

  • Requires access to both wall faces during installation
  • Works well in walls with heavy MEP routing since it doesn't obstruct the cavity as much as a channel does
  • Needs at least two anchorage locations along the run

Tension-Compression Systems

Cold-rolled channel bridging threads through the stud punch-outs, engaging in roughly a 50/50 split between tension and compression as loads shift.

  • Only needs access to one side of the wall during installation
  • Punch-outs across all studs must align, which is a common field coordination headache
  • May need only one anchorage point along the wall length, since it resists both directions

Compression-Only Systems

Continuous blocking systems fall into this category. They suit walls where deflection control matters more than install speed.

  • Higher stiffness capacity than strap or channel bridging
  • Stronger option when serviceability limits govern
  • Typically slower to install than tension or channel runs

Proprietary Bridging Bars

Pre-notched spacing/bridging bars are designed to speed up installation on standard 12", 16", or 24" stud spacing.

  • Faster to install than field-cut channel
  • Limited by stud size and tight alignment requirements
  • Lighter-gauge studs may still need supplemental anchorage

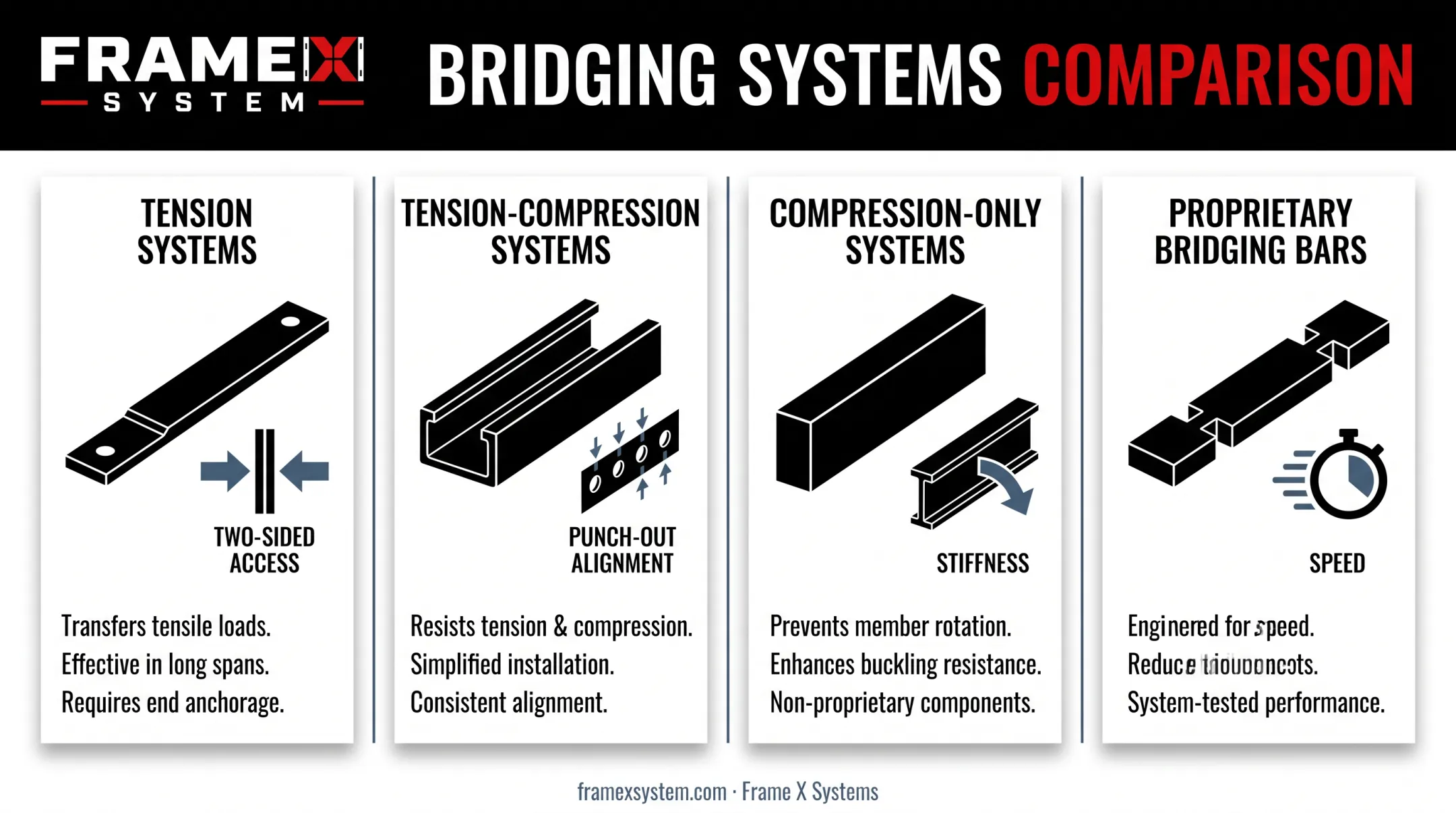

Four CFS wall bridging system types comparison tension compression bars

Are Metal Studs Load-Bearing, and How Much Weight Can a Wall Support?

Metal studs can be load-bearing or non-load-bearing. Which one you're looking at depends on gauge, spacing, and the structural intent behind the design, not the stud's appearance.

Capacity isn't a single number you can look up. It depends on:

  • Stud gauge and section properties
  • Stud spacing and unbraced height
  • Bracing configuration
  • Whether loading is purely axial or combined with lateral forces

Combined axial and lateral loading requires additive brace force checks. A stud that easily handles axial load alone may need a different bracing solution once wind or seismic lateral demand is added.

Proper bridging directly increases effective load capacity. Shortening the unbraced length between restraint points reduces buckling risk and lets a stud carry more load than it could unbraced.

Frame X Systems supplies both load-bearing and non-load-bearing wall panels. Bracing configuration is set project by project through engineering and constructability review, not a one-size-fits-all default.

Thermal Bridging vs. Wall Bridging: Avoiding Confusion

These two terms share a word, but they describe completely different problems.

Structural wall bridging—the focus of the sections above—keeps studs from buckling or twisting under load.

Thermal bridging is a building envelope issue. It happens when steel studs conduct heat directly through the wall assembly, from the conditioned interior to the exterior, reducing the wall's effective R-value and hurting energy code compliance.

Steel is a far better heat conductor than wood, so a steel-framed wall loses more insulating performance through the studs themselves. Address that loss with rigid exterior insulation, offset supports, or nonconductive attachments. The 2021 IECC includes a specific effective R-value table for steel stud assemblies to account for this.

Solve both issues together early—not after problems show up in the field. Resolving structural bracing and envelope thermal performance in the same BIM coordination pass avoids a second round of field fixes once framing is already up.

Why Pre-Coordinated Framing Reduces Bracing Errors

Field-calculated bridging layouts are a recurring source of RFIs, missed anchorage points, and inspection delays. When bridging spacing, type, and anchorage get worked out on the fly during framing, small misalignments turn into schedule problems fast.

Common issues when bracing isn't coordinated ahead of time:

  • Bridging locations that conflict with MEP runs
  • Anchorage points left off shop drawings
  • Punch-out misalignment discovered mid-installation
  • Inspection delays from incomplete bracing documentation

A BIM-coordinated, engineer-stamped framing package prevents these problems before fabrication. Frame X Systems builds project-specific engineered shop drawings and a stamped structural package before manufacturing starts. Framing is coordinated against architectural, structural, and MEP systems so clashes are caught in the model, not on the wall.

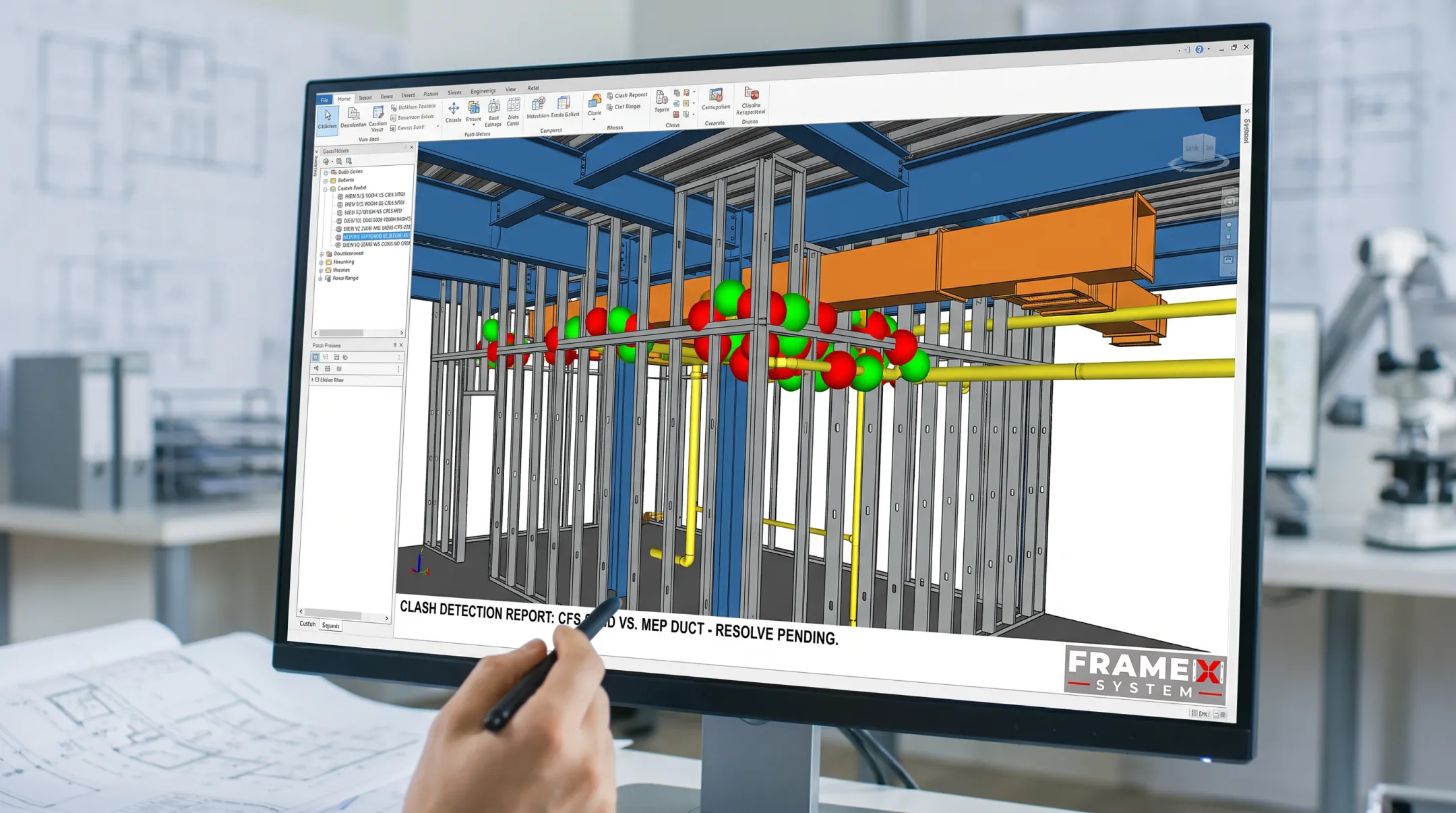

BIM coordinated engineered CFS framing shop drawings and structural package

Panels arrive labeled and sequenced for installation, with the structural package already reviewed and approved. That's the core idea behind an architect-led approach: bracing decisions get made at the design table, not improvised on the jobsite.

Frequently Asked Questions

What are the bracing requirements for metal stud walls?

AISI S100 requires brace strength of 1% of the stud's axial compressive strength plus a stiffness check. AISI S211 requires 2% of the design compression force, with no separate stiffness requirement.

Do metal studs need bracing?

Yes, axially loaded studs need bracing to prevent flexural, torsional, and flexural-torsional buckling. Without it, studs can fail under loads well below their theoretical capacity.

Are metal studs load-bearing?

It depends on gauge, spacing, and design intent. Some CFS studs are engineered purely as load-bearing wall panels, while others frame non-load-bearing partitions.

How much weight can a metal stud wall support?

There's no fixed number. Capacity depends on stud size, spacing, height, and bracing configuration, plus whether loads are purely axial or combined with lateral forces.

What is thermal bridging in walls?

Thermal bridging is heat conducted through steel studs across the building envelope, distinct from structural bridging. It lowers a wall's effective R-value and affects energy code compliance.

What are cold-formed steel sections?

CFS sections are roll-formed steel profiles, including studs, tracks, and channels, used to build wall, floor, and roof framing assemblies in place of traditional lumber.
