Metal truss bracing gets treated as an afterthought on too many sites. Crews set trusses, skip the bracing sequence, and assume the sheathing will hold everything together. It won't.
This article covers why bracing matters, the different types available, how span affects your bracing requirements, and the installation practices that keep crews safe. We'll also look at how pre-engineered framing packages remove much of the guesswork before a single truss reaches the jobsite.
Key Takeaways
- Cold-formed steel trusses require engineered restraint during erection and often permanently, per AISI S240 and S202 standards.
- Lateral and diagonal bracing work together; neither alone provides adequate stability against buckling.
- Bracing requirements scale with truss depth, spacing, load, and span, not a single span number for every project.
- Truss design drawings and manufacturer specs govern bracing, not generic rules of thumb.
- Pre-coordinated framing packages with stamped structural drawings reduce field guesswork on bracing placement.
What Is Metal Truss Bracing and Why Does It Matter?
Metal truss bracing refers to the temporary and permanent structural elements that keep trusses stable against lateral forces and buckling, both during installation and often for the life of the building. Cold-formed steel (CFS) trusses are narrow relative to their span and depth. Without lateral restraint and diagonal triangulation, that geometry makes them prone to tipping, twisting, or buckling under load. Think of a single truss standing alone on a wall plate. It has almost no resistance to sideways movement until something ties it to its neighbors. That's the job of bracing: it transfers load away from a vulnerable member toward parts of the structure better equipped to resist it. The 2024 IBC treats bracing as structural, not optional. Structural CFS trusses fall under AISI S240, which requires trusses to be installed vertically, in-plane, at correct spacing, and properly braced before they're considered performing as designed, according to the 2024 International Building Code, Chapter 22.
Temporary vs. Permanent Bracing
- Temporary bracing stabilizes trusses during erection, before sheathing or decking ties the system together.
- Permanent bracing remains for the life of the structure, resisting long-term code load combinations such as wind and snow. Some permanent restraint can be satisfied through standard industry details, member reinforcement that eliminates the need for a separate brace, or a project-specific engineered solution. Which method applies depends entirely on the truss design drawings for that project.
Do Metal Trusses Need Bracing?
Yes. Bracing is part of the engineered load path. AISI S240 states truss performance depends on correct spacing and proper bracing being in place. Skipping it is a documented cause of jobsite injuries and structural failures during roof and floor framing.
Types of Metal Truss Bracing
Manufacturers and engineers typically describe CFS bracing using a few consistent categories. Each does a different job.

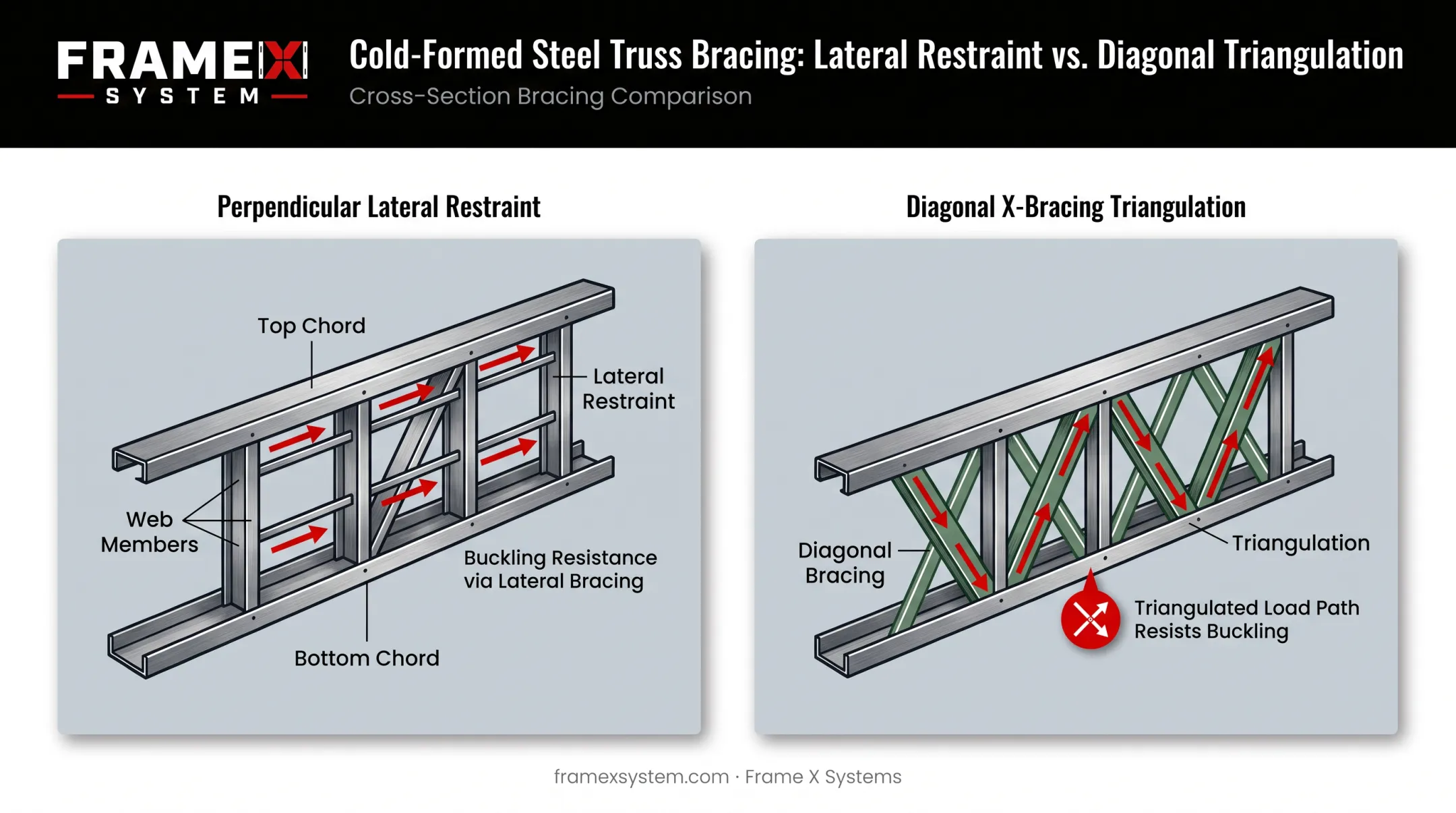

Lateral restraint limits side-to-side, out-of-plane movement between chords or webs of adjacent trusses. On its own, it's not enough. Lateral restraint needs diagonal bracing to resist the forces trying to push the truss line over.
Diagonal restraint ties lateral restraint lines together in the same plane, creating triangulation. This is what actually resists shear and buckling forces. It's sometimes called X-restraint or cross-restraint, and it's the piece that turns a row of unstable trusses into a rigid system.
T-bracing shows up in some project specifications as a steel T-shaped reinforcement between chords, generally for longer spans or high-wind/seismic conditions. There's no single universal T-brace detail across the CFS industry. If a project calls for it, the engineer or manufacturer defines the exact shape, connection, and design force on the drawings.
Proprietary combined systems (strap braces, engineered clips) bundle lateral and diagonal function into one installed piece, cutting install time. Whether a given project uses these depends on the manufacturer's specified system.

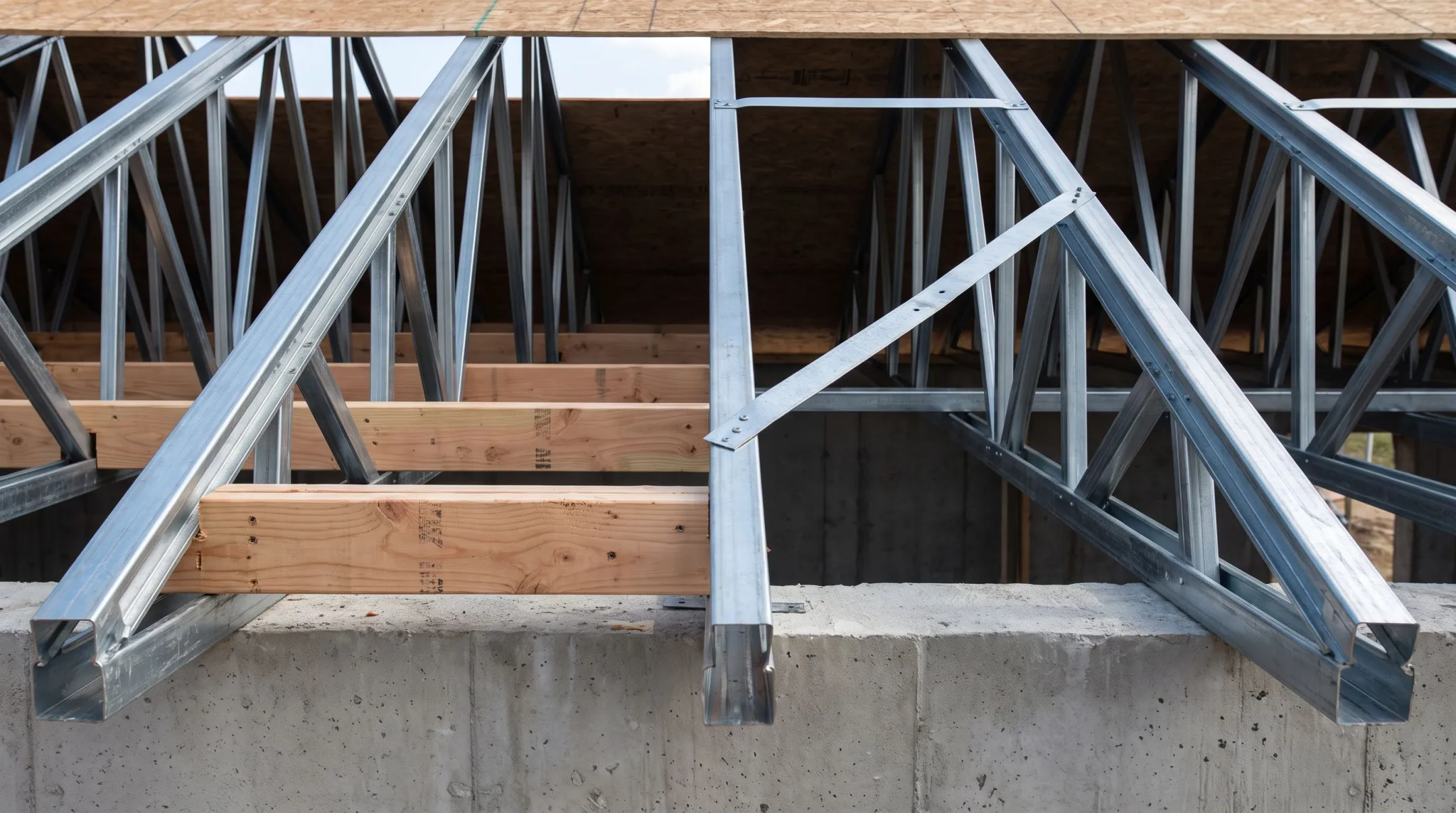

Wood Blocking vs. Metal Bracing
| Factor | Wood 2x4 Blocking | Metal Bracing Systems |
|---|---|---|
| Install speed | Slower, more cutting/fitting | Faster with pre-fabricated components |
| Reusability | Limited, often single-use | Reusable for temporary applications |
| Corrosion resistance | Not applicable (rot/warp risk) | High, especially galvanized systems |
| Fit precision | Field-adjusted | Engineered to spec |
Permanent vs. temporary: Bracing methods vary by project. Some stay embedded in the finished structure as part of the engineered restraint system; others are erection-only and come out once sheathing takes over the stabilizing role. The truss design drawings, not the crew's habits, determine which is which.

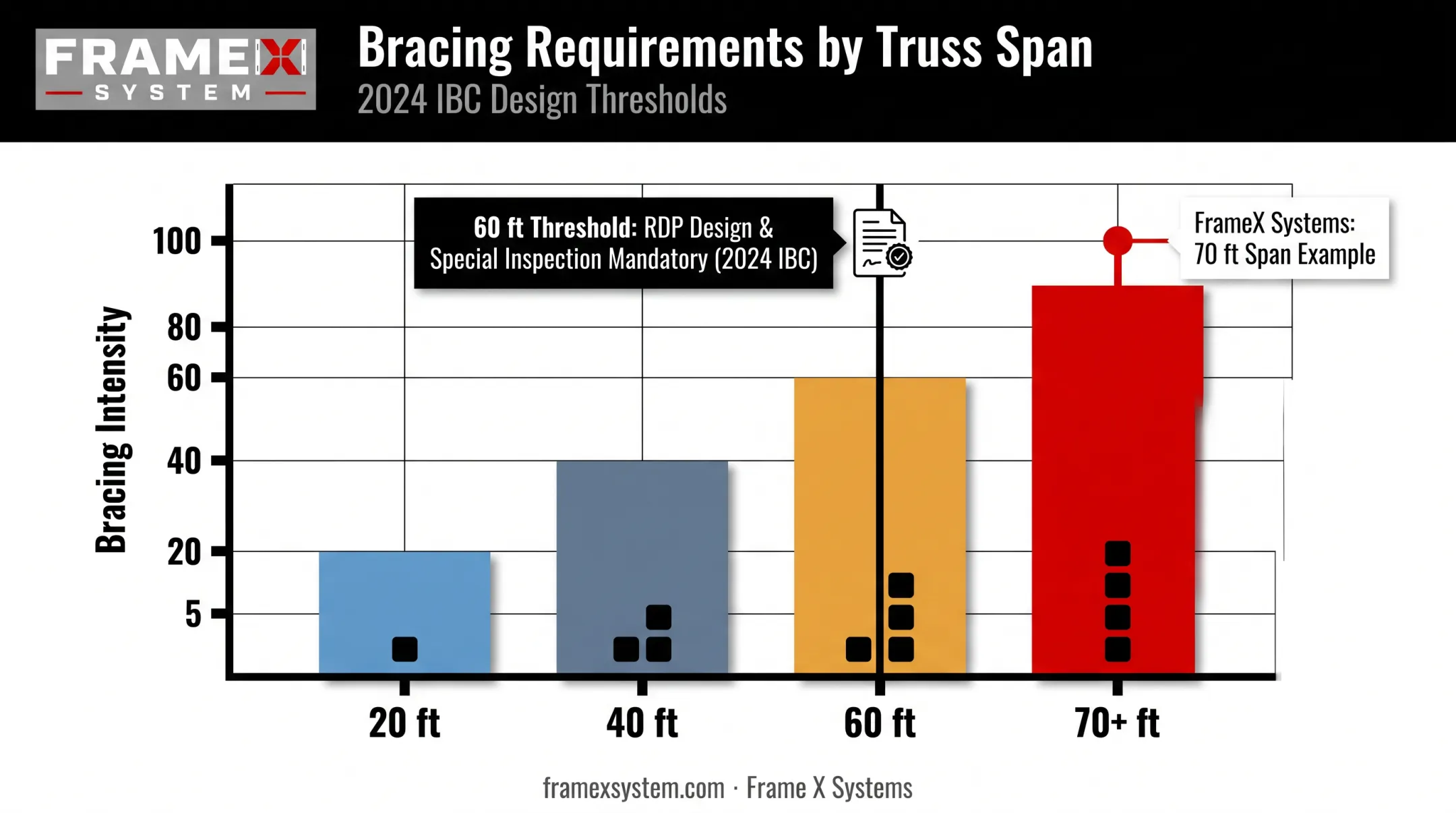

Truss Span and Bracing Requirements
There's no universal "unbraced span" number that applies to every CFS truss. Bracing needs depend on truss depth, chord size, spacing, and applied load. Geometry and load combinations matter more than a single span figure.
That said, code does draw a hard line at a specific span:
- 2024 IBC: Clear spans of 60 feet or greater require a registered design professional (RDP) to design temporary installation restraint and permanent individual-member restraint.
- Spans over 60 feet also trigger mandatory special inspection under Section 1705.2.
Don't mistake that 60-foot mark for "unbraced span capacity." It's a design-responsibility and inspection trigger, not a green light for anything under that length to skip bracing.
AISI S240 suggests a maximum 10-foot spacing for bottom-chord permanent lateral restraint, based on field experience — a benchmark, not a hard span limit. As spans grow, expect:
- More frequent diagonal bracing intervals
- Tighter installation tolerances (plumb and bow limits)
- Greater sensitivity to construction loads like wind and snow during erection
FrameX Systems has engineered CFS trusses achieving 70-foot clear spans on a 34,000-square-foot church rebuild in Jackson, Missouri. Spans like these need engineered, project-specific bracing—not a generic field solution.

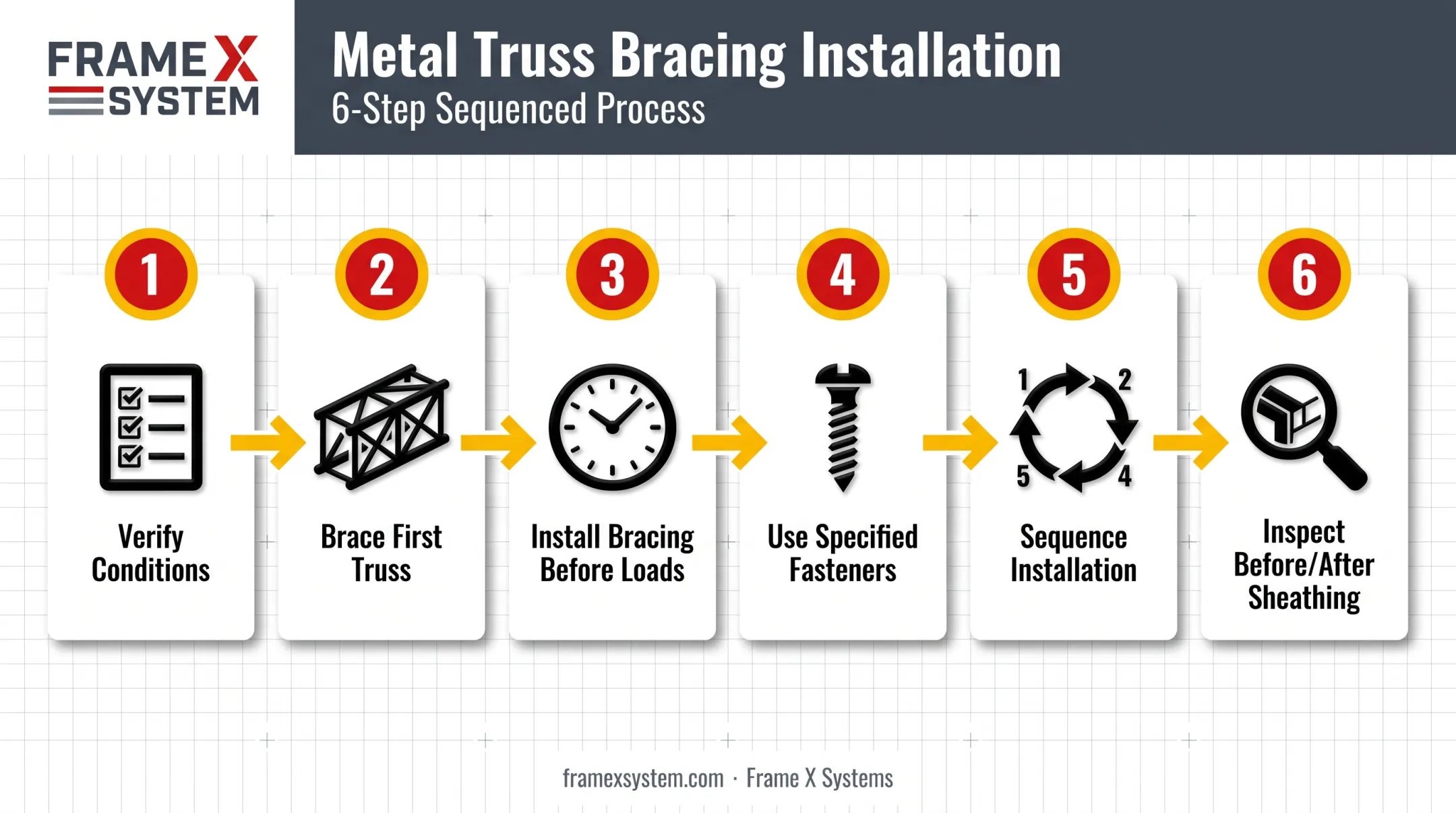

Best Practices for Installing Metal Truss Bracing
Field sequencing matters as much as brace selection. Run the field sequence in this order so temporary and permanent bracing lock in before loads arrive.
- Verify installation conditions first. Check dimensions, trade compatibility, and site readiness before setting a single truss.
- Brace the first truss thoroughly. Every subsequent truss depends on that first one being straight, plumb, and fully stabilized with both temporary and diagonal bracing.
- Install bracing before applying loads. Both erection/temporary bracing and permanent bracing go in before any construction loads hit the system.
- Use manufacturer-specified fasteners only. Screw type and location come from the design drawings. Welding or substitute fasteners aren't permitted.
- Sequence bracing installation. Set a small group of trusses with full bracing, then continue with lateral restraint at intervals specified by the project drawings.
- Inspect before and after sheathing. Confirm nothing shifted or loosened during the decking process.
Never cut, remove, or alter a bracing member without written approval from the engineer of record. That includes seemingly minor field adjustments that can compromise the entire load path.

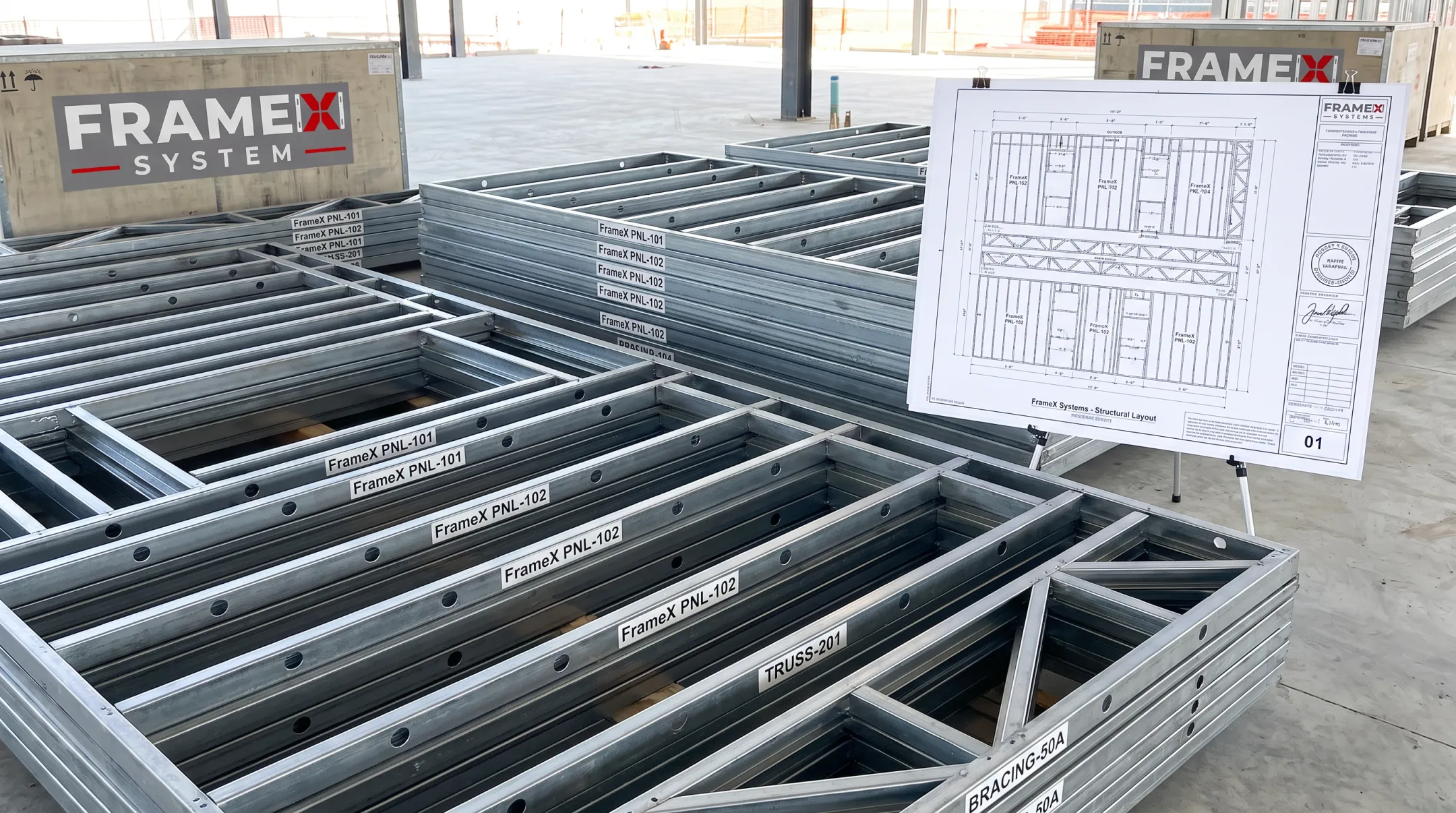

How Pre-Engineered Framing Reduces Bracing Risks
Most bracing problems trace back to one root cause: the crew is figuring things out on the fly. FrameX Systems approaches this differently. Its architect-led, BIM-coordinated cold-formed steel framing packages are engineered for constructability before a truss ever leaves the manufacturing floor.
FrameX's structural framing assemblies incorporate horizontal and diagonal bracing built into the panel design itself, with pre-drilled holes for consistent field assembly. Every project ships with:
- Stamped structural packages showing the engineered bracing arrangement
- Coordinated BIM models that catch conflicts with architectural, structural, and MEP systems before fabrication
- Labeled, sequenced panels matched to the installation layout
That combination means a contractor isn't guessing where bracing goes or improvising a connection detail mid-install. The bracing requirements were resolved during design, not discovered on the roof.
Frequently Asked Questions
Do metal trusses need bracing?
Yes. Codes and truss manufacturer specifications require bracing to prevent lateral buckling and collapse, both during installation and often for the life of the structure. Bracing is part of the engineered design, not optional field practice.
What are the different types of metal truss bracing?
The main categories are lateral restraint, diagonal restraint, T-bracing, and proprietary combined systems like strap braces. Lateral and diagonal bracing typically work together; one without the other doesn't provide adequate stability.
How far can metal trusses span without support?
There's no universal unbraced span number. Bracing needs depend on truss depth, spacing, and load, though the 2024 IBC requires engineer-designed bracing and special inspection for clear spans of 60 feet or greater.
What happens if a truss isn't properly braced?
Unbraced trusses can buckle, rack out of plumb, or collapse entirely during installation. OSHA has cited contractors for exactly this failure, including a case that resulted in a worker fatality.
Can metal truss bracing remain permanently in place?
Yes. Certain bracing, particularly bottom-chord restraint, can remain as part of the permanent structure rather than being removed after erection. The truss design drawings specify which bracing is temporary and which stays.
Who is responsible for truss bracing on a jobsite?
The contractor or installer bears field responsibility, but they must follow the truss manufacturer's design drawings and the engineer of record's specifications. Bracing isn't left to crew judgment alone.
